Architectural grade
Heavy Round Bracket & Cover - SRB 05
Star Rail architectural profile

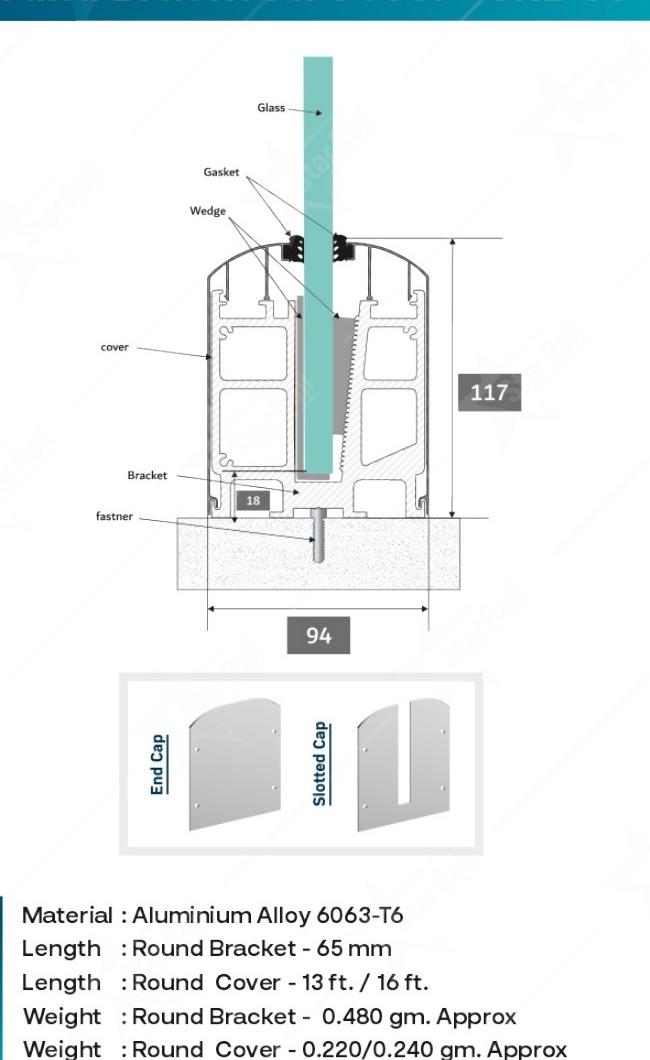

Heavy round bracket and cover system for architectural glass railings. Designed for 12 mm glass with gasket and wedge clamping, secured to the floor. Round bracket length: 65 mm. Round cover lengths: 13 ft and 16 ft. Section dimensions: 117 mm high x 94 mm wide with an 18 mm glass channel. Approximate weight: bracket 480 g; cover 220 / 240 g. Available in natural, powder-coated, wood-coated and anodized finishes.
Product specifications
- Material grade
- Aluminium Alloy 6063-T6
- Finish
- Natural, Powder Coating, Wood Coating, Anodized
- Size
- Bracket: 65 mm; cover: 13 ft / 16 ft; section: 117 x 94 mm; glass channel: 18 mm
- Category
- Heavy Round Bracket & Cover
Product highlights
- Designed for 12 mm glass
- Floor-mounted bracket and cover system
- 13 ft / 16 ft cover options
- Approx. weights: bracket 480 g; cover 220 / 240 g
- Natural, powder-coated, wood-coated or anodized finishes
