Architectural grade
Step Bracket & Cover - SRB 01
Star Rail architectural profile

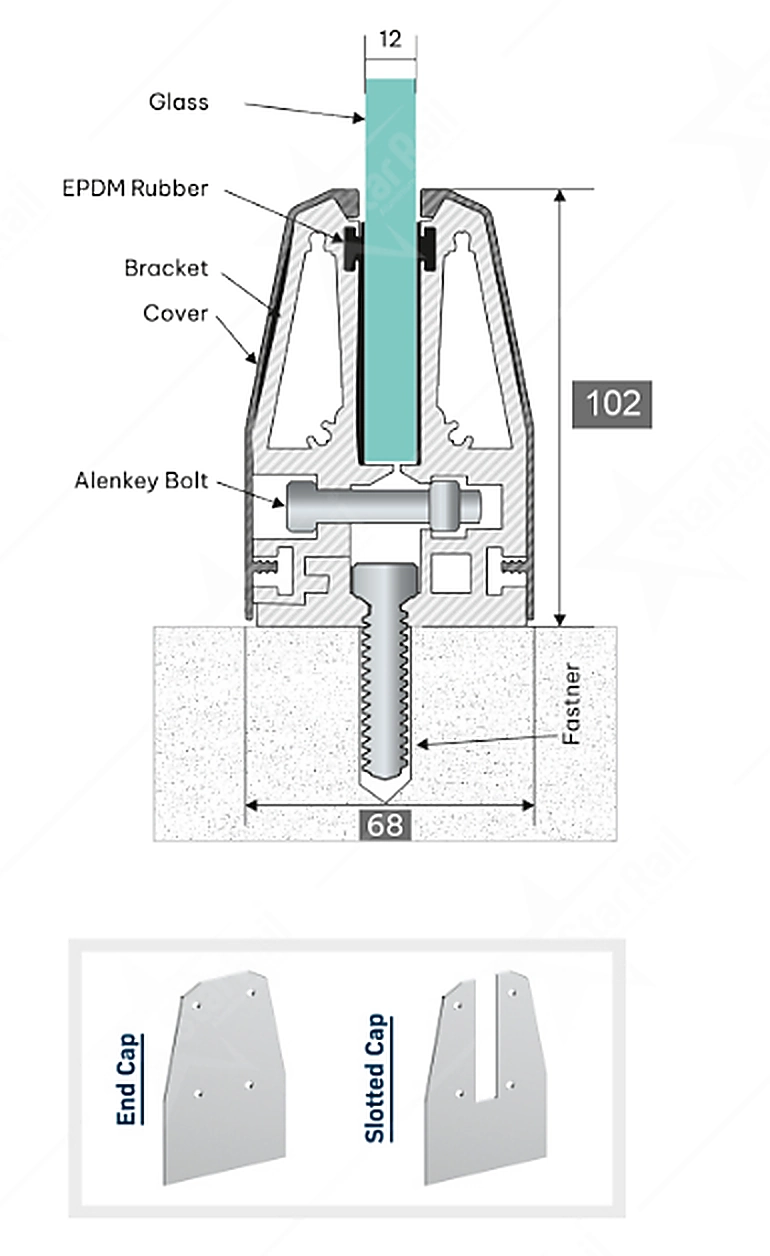

Floor-mounted step bracket and cover system for architectural glass railings. Designed for 12 mm glass with EPDM rubber, an aluminium bolt and floor fastener. Bracket length: 65 mm. Cover lengths: 13 ft and 16 ft. Section dimensions: 102 mm high x 68 mm wide. Available in natural, powder-coated, wood-coated and anodized finishes.
Product specifications
- Material grade
- Aluminium Alloy 6063-T6
- Finish
- Powder Coating
- Size
- Bracket: 65 mm; cover: 13 ft / 16 ft; section: 102 x 68 mm
- Category
- Top Mount Bracket-Cover System
Product highlights
- Designed for 12 mm glass
- 65 mm step bracket
- 13 ft / 16 ft cover options
- 6063-T6 aluminium alloy
- Natural, powder-coated, wood-coated or anodized finishes
