Architectural grade
Square Bracket & Cover - SRB 02
Star Rail architectural profile

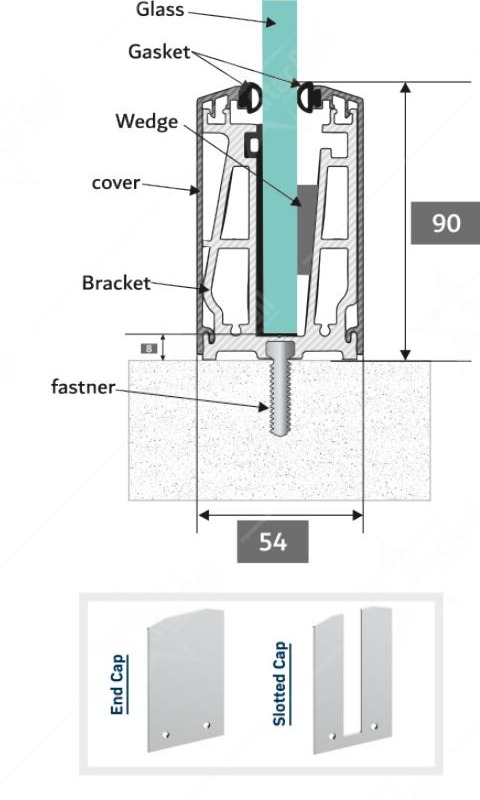

Floor-mounted square bracket and cover system for architectural glass railings. Designed for 12 mm glass with a gasket and wedge clamping assembly secured to the floor. Bracket length: 65 mm. Cover lengths: 13 ft and 16 ft. Section dimensions: 90 mm high x 54 mm wide. Available in natural, powder-coated, wood-coated and anodized finishes.
Product specifications
- Material grade
- Aluminium Alloy 6063-T6
- Finish
- Natural, Powder Coating, Wood Coating, Anodized
- Size
- Bracket: 65 mm; cover: 13 ft / 16 ft; section: 90 x 54 mm
- Category
- Square Bracket & Cover
Product highlights
- Designed for 12 mm glass
- 65 mm square bracket
- 13 ft / 16 ft cover options
- 6063-T6 aluminium alloy
- Natural, powder-coated, wood-coated or anodized finishes
