Architectural grade
Step Bracket & Cover - SRB 04
Star Rail architectural profile

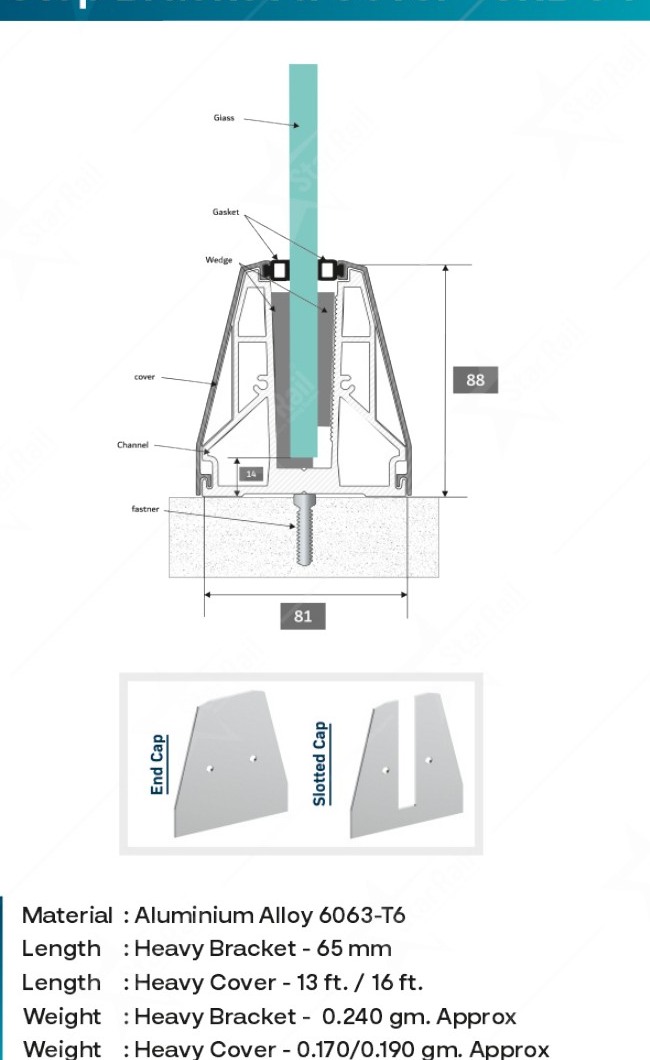

Step bracket and cover system for architectural glass railings. Designed for 12 mm glass with gasket and wedge clamping, secured to the floor. Bracket length: 65 mm. Cover lengths: 13 ft and 16 ft. Section dimensions: 88 mm high x 81 mm wide with a 14 mm glass channel. Approximate weight: bracket 240 g; cover 170 / 190 g. Available in natural, powder-coated, wood-coated and anodized finishes.
Product specifications
- Material grade
- Aluminium Alloy 6063-T6
- Finish
- Natural, Powder Coating, Wood Coating, Anodized
- Size
- Bracket: 65 mm; cover: 13 ft / 16 ft; section: 88 x 81 mm; glass channel: 14 mm
- Category
- Step Bracket & Cover
Product highlights
- Designed for 12 mm glass
- Floor-mounted bracket and cover system
- 13 ft / 16 ft cover options
- Approx. weights: bracket 240 g; cover 170 / 190 g
- Natural, powder-coated, wood-coated or anodized finishes
